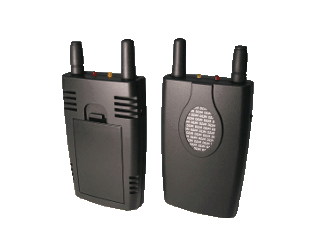

PRODUCTS JM502 Cell Phone Detector

Cell phone jammer or disabler is a device that transmit pulsing signal at the frequency the cell phone is receiving. The signal pulses disturb the down link signal from the base station randomly.

The net result is forming a sequence of data that can not be decoded properly by the base band circuit of the cell phone.Under this circumstance, cell phone can not obtain any meaningful signal from the base station and faulty concluded that there is no service available. Cell phone ceases operation until a recognizable signal is received. In the case that a conversation has already started before the jammer is turned on, the jamming signal will destruct the data to a degree that the voice decoder will cease function. The cell phone user can not hear any voice or receive any meaningful message.

DZJM 502 is a medium power jammer designed to provide the user a dome of silence when needed. Inside this dome, the user can block out any cell phone intrusion. The power is properly adjusted so the jamming distance enough for personal protection.

In many countries, jammer is allowed only for public safety applications such as prison, court house, police car, remote bomb defusing, exam room...Buyer should check the local ordinance before purchasing.

Frequency Bands 可遮蔽的範圍
GSM850 : 869-894MHz
EGSM900 : 926-960MHz
DCS1800 : 1805-1880MHz
PCS1900 : 1930-1990MHz
CDMA800 : 869-894MHz
WCDMA/CDMA2000 : 2110-2170MHz
PHS : 1895-1919MHz
DECT : 1880-1900MHz
Tramsmission Power 傳輸功率
GSM/EGSM : > 30 dBM
DCS/PCS : >27 dBm
WCDMA / CDMA 2000 : >25 dBm
Battery 電池
3.8 V, 1700 mA h, Lithium Rechargeable

AC Adopter 充電器

50/60 Hz, 100-240 VAC / 5 VDC

Dimension 尺寸

23.5 mm (T) x 60 mm (W) x 96 mm (L)

Weight 重量

101 grams (including battery)

A multi-mode cell phone disabler for protecting personal privacy

It can operate continuously up to 90 minutes with fully charged battery .

5-10 meters @ -45dBm base-station signal (urban area)
10-20 meters @-80dBm base-station signal (rural area)
